DC193 Document Camera


Powerful Document Camera Visualizer from EAPL, India
Optimized for any size presentation environment.
Speed, Reliabilty and Simplicity .
Cost-Effective and Compact Size document camera for projector.

Visualiser - Lumens DC193
for better teaching and learning, enhances Students understanding, increases participation and knowledge retention, keeps the Students energized and so on..

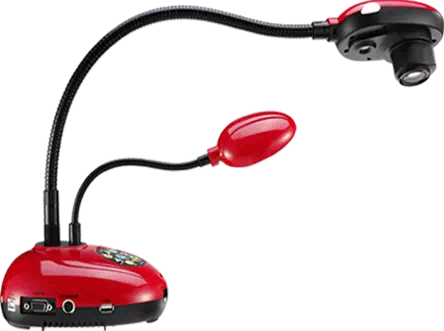

The Lumens™ DC193 document camera has 20x zoom capability and a professional image sensor to deliver vivid colors at Full HD, 1080p output resolution with 30 fps. It transmits a streaming image smoothly in real time without delays. The internal memory stores up to 240 images and is expandable to 4TB using a USB flash drive. The one-touch video recording button allows for recording stand-alone presentations without the need for a PC. The jointless, highly flexible gooseneck enables a 360° viewing angle and the ability to view an object from just 1.2 inches / 3 cm to observe the objects finer details. The adjustable side lamp design prevents reflections. A single auto-tune button provides the perfect image quality every time. The Lumens DC193 is a high-definition multimedia document camera that makes presentations and teaching more interactive.

Lumens DC193 Features

Full HD 1080p output resolution with 30fps
20 times variable zoom ratio
VGA input/output, HDMI input/output
Built-in microphone
One-touch synchronous audio/ video recording
Compatible with USB flash drives, expandable to 4TB
Active VGA and HDMI pass through PC
Plug & Play and compatible with all major whiteboard brands
Unique image optimization auto-tune button
Innovative built-in power supply
Rigid lens provides protection from abnormal operation
5 year warranty

Lumens DC193 Specifications

Image Sensor 1/3 CMOS Color Image Sensor
Total pixels 3.25MP
Zoom 20x
Digital Zoom 12x
Mechanical Zoom 10x
Close-up 0.78" (2cm)
Shooting Area Max. 15.7" x 11.8" (400 x 300 mm)
Output Resolution XGA, SXGA(1280x960), WXGA, 1080p
High Color Reproduction ΔE*ab (mean): 14.8
SNR 51dB
Sharpness MTF 937 line
Frame Rate 30fps
Lamp LED side lamp supported by gooseneck
Power Supply Internal Power Supply, 100-240VAC
USB Image Transmission USB 2.0 (480 Mbps) high speed transmission
Video/Audio Recording One touch button records image and sound synchronously
Built-in Microphone Yes
Image Capture Single or continuous capturing
Auto Tune Yes, one button for optimization image
Image Rotation 0˚, 180˚, flip, mirror
Anti-Theft Kensington anti-theft lock device
Free Lumens™ Software Supports PC Windows 10, 8, 7, XP, Vista and Mac OSX, Chrome OS ; iOS, Android APP ; WIA & TWAIN interface
Included Accessories Power cable, VGA cable, USB cable, remote control, microscope adapter
