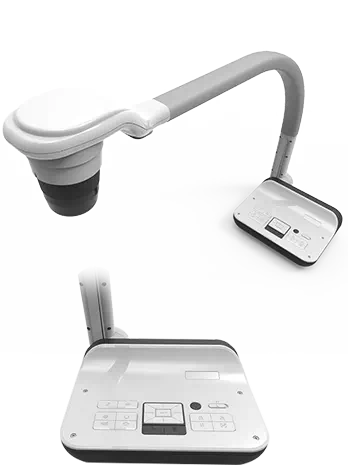

DC2Gi Document Camera

EAPL DC2Gi DOCUMENT CAMERA


Powerful Document Camera Visualizer from EAPL, India
Jointless and flexible gooseneck design
Full HD 1080 video output resolution
Cost-Effective and Compact Size document camera for projecting documents/objects

Visualiser - DC2Gi Document Camera
for better teaching and learning, enhances Students understanding, increases participation and knowledge retention, keeps the Students energized and so on..

EAPL-DC2Gi Document Camera is a teaching device, helpful for the teachers/instructors to demonstrate the student/audience about a particular topic, just you have to placed the documents under the camera and connect the document camera with the projector or monitor to display image, drawing, content on big screen with high resolution (30 frames per second). This teaching tool has the ability to display anything from a small to large object. The EAPL-DC2Gi features a 8-megapixel sensor, 17X Optical Zoom and up to 30 frames-per-second video (at full resolution) for outstanding image quality and video recording for lecture in classroom/conference hall, save it in PC/Laptop or upload it in website for future reference.

Document Camera Features

10X(17x) optical zoom with auto focus lens
Presentation aids: various image effects/ remote control
"Gooseneck" design enables various working surfacest
8M sensor provides incredible image quality
Full HD 1920x1080/ H.264 Video up to 30fps
HDMI/VGA/USB/SD Slot
Active VGA and HDMI pass through PC
17X optical zoom ;(10X zoom lens+1.7X extension zoom) ; 8X digital zoom ; 4X mechanical zoom

Visualiser DC2Gi Specifications

LENS 34-340mm / F2.8-3.5
SENSOR 1/3.2" CMOS Colour sensor
PIXELS 8 Megapixel
ZOOM 17X optical zoom ;(10X zoom lens+1.7X extension zoom) ; 8X digital zoom ; 4X mechanical zoom
FRAME RATE Up to 30 (per second)
SHOOTING AREA A3 (420mmx297mm)
FOCUS Auto
OUTPUT RESOLUTION Still Image Resolution:8MP / 5MP / 2MP, HDMI Output Resolution:1920x1080; 1280x720, RGB Output Resolution:1600x1200; 1024x768
BRIGHTNESS ±7 Compensation
IMAGE CONTROL Freeze / Highlight / Mask / Flip / PIP / Slideshow
IMAGE EFFECT Text / Graphics / B&W / Negative / Sketch
REMOTE CONTROL Yes(IR Remote Control)
MECHANICAL ARM Yes
PC CAMERA Yes
RGB OUTPUT Yes(15-pin D-sub x1)
RGB INPUT Yes(15-pin D-sub x1)
HDMI OUTPUT Yes(15-pin D-sub x1)
HDMI INPUT Yes(19-pin HDMI 1.3 x1)
USB Yes(USB2.0, Type B x1)
DC 5V INPUT Yes(Power Jack x1)
EXTERNAL STORAGE-SDHC CARD SLOT Yes(support up to 32GB SDHC cards)
POWER SOURCE DC 5V, 100-240V, 50-60Hz
POWER CONSUMPTION TBD
PACKAGE CONTENT AC/DC Adapter x1,15-pin D-sub Cable x1(VGA Cable),USB Cable x1,HDMI Cable x1, Battery x2,Remote Control x1,Microscope Adapter x1,Anti-glare Sheet x1, Quick Guide x1,CD x1
