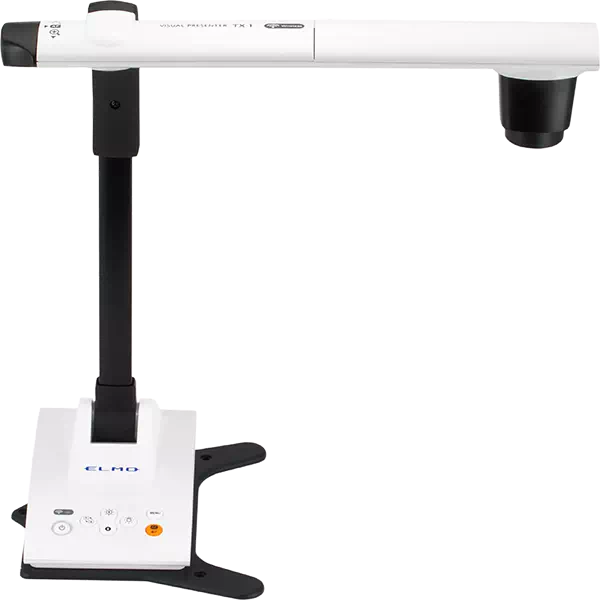

TX-1 Document Camera

DOCUMENT CAMERA ELMO TX-1


Built-in WIFI, simple & stylish, can easily fit inside handbag Elmo TX-1 now from EAPL, India
Now wirelessly control Your Camera via WIFI.
12x Optical Zoom and 13M Sensor provides Superb image quality and full motion video in 60fps.

Visualiser - ELMO TX-1 Document Camera
Help maintain your Students' interest with high quality Images. Enhances Students Understanding, Saves 95% Lab Activity Time and so on..

Document Camera Elmo TX-1was designed with not only the user in mind but the audience as well. With its new sleek and thin design it allows for better eye contact with your audience without blocking their view of you and the display. ELMO TX-1 also built-in WiFi connection source allows for wireless control of the camera from your Windows based device. It was also built with a 45% smaller footprint in order to save room and increase portability, simplified connection sources containing output options only for ease of use, and a built-in security plate to keep your TT-X1 safe and secure. TX-1 Document Camera provides incredible image quality, 8X optical Zoom enable to record lecture in classroom/conference hall with outstanding video quality, save it to the PC/Laptop via USB cable for future reference. TX-1 is easy to connect, operate and simply enables you to place any item under the camera to display them to the audience..

ELMO TX-1 Features

Wi-Fi allows for wireless transmission of HD video to stream to a Windows based computer or mobile device
The TX-1 is equipped with an HDMI output to give you the superb image quality you need.
12x optical and 8x digital zoom, allowing you to see things the human eye cannot
The most flexible document camera: Bend it, Twist it, Fold it.
The specially designed included Base Plate acts as an anti-theft bracket while still maintaining the cameras tiny footprint.
30FPS full motion videos with full hd quality
3.4M sensor CMOS provides incredible superb image quality
Weighing only 10lbs, it is completely portable and easy to transport

Visualiser ELMO TX-1 Specifications

LENS f=4.0mm-48.0mm, F3.2-3.6
FRAME RATE 30 fps
PIXELS 2,144(H)x1,588(V) (total), 1/2.8” CMOS 3.4M pixels(effective)
ZOOM 8x (MAX) (Digital), 12x (optical)
EFFECTIVE PIXELS 13M (4160 x 3120)
IMAGE PICK-UP DEVICE 1/2.8” CMOS 13M pixels
SHOOTING AREA A3 or more (420x313mm) Analogue RGB
FOCUS Range WIDE side (f=4.0mm or 23.4mm less than 50mm TELE side (f=23.4mm-more) 200mm
FOCUS CONTROL One-Push AF
ZOOM BUTTON (W/T) Provided
WHITE BALANCE Auto/Manual
BRIGHTNESS Control Provided
PAUSE Provided
AF BUTTON Provided
IMAGE ROTATION 0°/180°
LIGHTING (LED) Provided
FLICKER CORRECTION 50Hz/ 60Hz, Via USB/Software *on Expansion box
USB output USB 2.0 UVC 1080p/720p/XGA/VGA/30fps
HDMI output 1080i 30fps, 720p 30fps
ANALOGUE VGA Output XGA (1024 x 768) 30 fps
HDMI Yes HDMI type A
USB Yes USB type B
VGA Yes Dsub 15p connector
DIMENSIONS (W x D x H) : 391.7 x 230 x 427.9mm (when setup)
: 183 x 230 x 482.8mm(when folded)
WEIGHT 2.4kg
POWER SOURCE DC jack 5V ( *on Expansion box)
POWER CONSUMPTION 8W
PACKAGE CONTENT AC adapter, USB cable (B), DC power cable, setup Guide, Product Warranty

Do you want to see live demo of Visualiser ELMO TX-1?
