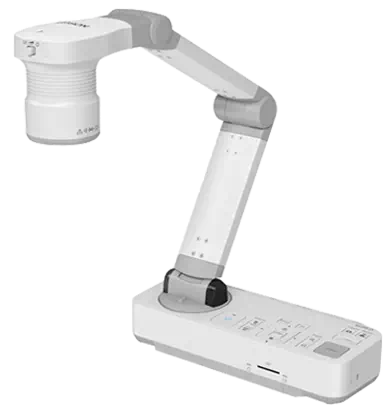

DC21 Document Camera

EPSON DC21 CAMERA


Powerful Full HD Visualizer
Optimized for any size learning environment.
Auto Focus, Reliable and Simple to Operate .
Cost-Effective and Compact Size document camera for projector.

Visualiser - EPSON DC21
for better teaching and learning, enhances Students understanding, increases participation and knowledge retention, keeps the Students energized and so on..

Take lessons further with the Full HD 1080p resolution Epson ELP-DC21 document camera. This flexible document camera easily captures and displays books, 3D objects and experiments. Simplified connectivity makes installation and control easier than ever before. The ELP-DC21 has a robust and durable design, with great security features allowing it to be permanently placed in a classroom or boardroom. Teachers can use the ELP-DC21 to demonstrate the view from a microscope, a live experiment in science class or display fine prints from an architectural drawing onto the bigger projected screen. Compatible with Epson EIT (Easy Interactive Tools) software, users can take advantage of features such as split screen mode, video recording with audio, image capturing and save recordings to an SD card or computer.

EPSON DC21 Features

Deliver powerful lessons with extraordinary close-up detail
10x digital zoom plus 12x optical zoom
Astounding clarity and colour
HD 1080p output resolution
Advanced connectivity
HDMI digital connectivity for high-definition video
Share magnified images
microscope adapter included; supports many standard microscopes
Record and share audio/video lessons
built-in microphone and included software; one-touch A/V recording
Ultra smooth video performance
30 frames per second (fps) at 1080p
Capture, save and present images
supports SD cards and computers
Convenient Freeze and Capture buttons
easily pause and/or resume the image

ESPON DC21 Specifications

Pick-up Device 1/2.7" CMOS Sensor
Effective Pixels 2MP*
Native Resolution 1080p
Aspect Ratio 16:9
Frame Rate Maximum 30fps
Output Resolution Analogue: SXGA / XGA / WXGA / 1080p USB : VGA / SVGA / XGA / SXGA / WXGA / 720p / 1080p HDMI : 480p / 720p / 1080p
Illumination White LED x 2 (Variable LED Light)
Brightness 250lx or above (at A3 shooting area)
Lens Optical Zoom f/3.4-5
Shooting Area Maximum 297 x 526 mm at 1080p output resolution
Zoom 12x Optical Zoom 10x Digital Zoom
Illumination White LED x 2
Focus Auto
White Balance Yes (Auto)
Exposure Yes (Auto)
Brightness control Off, Middle, High
Image Rotation Yes
Image Freeze Yes
Source Search Yes
Aspect Ratio Yes (Auto)
Digital Scroll Pan/Tilt Yes
Flicker Reduction Yes (50Hz, 60Hz)
Negative/Positive Conversion Yes
Colour & Black & White Selection Yes
Split Screen Yes
Time Lapse Yes
Microscope View Yes (Microscope Adaptor Included)
SD Card Slot Yes
Saving Formats & Slideshow Capture: webp (Resolution: 1920 x 1080) Slideshow : webp (Resolution 7680 x 5760)
Video Capture & Play Capture: AVI (Motion webp + PCM) Resolution: 720p File size: up to 2GB Slideshow : webp (Resolution 7680 x 5760)
Input VGA, in-built MIC
Output VGA, USB-B, HDM
Dimensions (Open) (DxWxH) 502 x 270 x 328 mm
Weight 2.6kg
Kensington Lock Yes
Power Supply Voltage 100 - 240V AC
Power Frequency 50/60Hz
Output Voltage of AC Power Adapter DC 12V
Power Consumption(Standby Mode) Less than 0.5W
PC applications* Easy Interactive Tools Ver 4.11 (for Windows) Easy Interactive Tools Ver 4.10 (for Mac OS X)
Standard Warranty 12 Months
