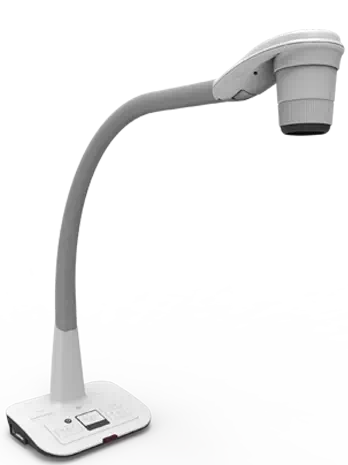

DC4i8la Document Camera

HD DOCUMENT CAMERA


Powerful Document Camera Visualizer from EAPL, India
Optimized for any size presentation environment.
Speed, Reliabilty and Simplicity .
Cost-Effective and Compact Size document camera for projecting small image to large size.

Visualiser - DC4i8la Document Camera
for better teaching and learning, enhances Students understanding, increases participation and knowledge retention, keeps the Students energized and so on..

Visualise Ultra detail for easy learning, when it comes to teaching people, it's often the detail that counts and more is always better. Being able to share your ideas and knowledge with a large audience can be difficult but a huge benefit.With Document Camera, you simply position items under the camera, connect it to a projector and show everything on the big screen live as it happens.
Information becomes clear and everyone shares your vision.The EAPL-DC4i8LA features a 8-megapixel sensor, (10X Optical Zoom / 8X Digital Zoom)and up to 30 frames-per-second video (at full resolution) for stunning image quality and performance allowing you to see detail often not visible to the human eye.
You can even take a video of a science experiment with the document camera, save it on your PC/Laptop via USB or save to a SD Card and use it in your next class and students can record their demonstrations during presentations for later review.

Document Camera Features

10X(17x) optical zoom with auto focus lens
Presentation aids: various image effects/ remote control
"Gooseneck" design enables various working surfacest
8M sensor provides incredible image quality
Full HD 1920x1080/ H.264 Video up to 30fps
Active VGA and HDMI pass through PC
10X optical zoom; 8X digital zoom
Auto/Manual Focus(by Remote control)

Visualiser DC4i8la Specifications

LENS 10X optical zoom
SENSOR 1/3.2" CMOS Colour sensor
PIXELS 8 Megapixel
ZOOM 10X optical zoom; 8X digital zoom
FRAME RATE Up to 30 (per second)
SHOOTING AREA A3 size ( A3 size @ 4:3; B4+ size @ 16:9 )
FOCUS Auto/Manual (by Remote control)
OUTPUT RESOLUTION Still Image Resolution:8MP / 5MP / 2MP, HDMI Output Resolution:1920x1080@up to 30fps; 1280x720@up to 30 fps, VGB Output Resolution:1600x1200@up to 30fps; 1024X768@up to 30fps
CAPTURE TYPE Single
WHITE BALANCE Auto/Flurescent/Tungsten/Custom
BRIGHTNESS ±7 Compensation
IMAGE CONTROL Freeze / Highlight / Mask / Flip / PIP / Slideshow
IMAGE EFFECT Text / Graphics / B&W / Negative / Sketch
REMOTE CONTROL Yes
MECHANICAL ARM Yes (Gooseneck Design))
PC CAMERA Yes, UVC interface
RGB OUTPUT Yes(15-pin D-sub x1)
RGB INPUT Yes(15-pin D-sub x1)
HDMI OUTPUT Yes (mini HDMI x1)
HDMI INPUT Yes (mini HDMI x1)
USB Yes(USB2.0, Type B x1)
DC 5V Input Yes(Power Jack x1)
STORAGE Internal memory:115MB, External storage:Yes(support up to 32GB SDHC cards)
POWER SOURCE DC 5V, 100-240V, 50-60Hz
POWER CONSUMPTION 2.25W→3.75W (Max.)
PACKAGE CONTENT AC/DC Adapter x1,15-pin D-sub Cable x1(VGA Cable),USB Cable x1,HDMI Cable x1, Battery x2,Remote Control x1,Microscope Adapter x1,Anti-glare Sheet x1, Quick Guide x1,CD x1
