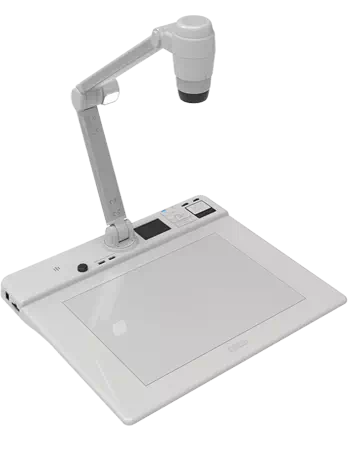

DC6D Document Camera

4K ULTRA PREMIUM GRADE DOCUMENT CAMERA


Powerful Document Camera Visualizer from EAPL, India
Optimized for any size presentation environment.
Speed, Reliabilty and Simplicity .
Cost-Effective and Compact Size document camera for viewing documents on big screen with perfect display quality.

Visualiser - DC 6D-S-2 Document Camera
for better teaching and learning, enhances Students understanding, increases participation and knowledge retention, keeps the Students energized and so on..

Visualise Ultra detail for easy learning When it comes to teaching people, it's often the detail that counts and more is always better. Being able to share your ideas and knowledge with a large audience can be difficult but a huge benefit. With Document Camera, you simply position items under the camera, connect it to a projector and show everything on the big screen live as it happens. Information becomes clear and everyone shares your vision. The EAPL-DC 6D-S-2 features a 13 Megapixel BSI CMOS image sensor, 31x Optical Zoom and up to 60 frames-per-second video (at full resolution)for stunning image quality and performance allowing you to see detail often not visible to the human eye. You can even take a video of a science experiment with the document camera, save it on your PC/Laptop via USB or save to a SD Card and use it in your next class and students can record their demonstrations during presentations for later review.

Document Camera Features

4K UHD output
USB side lamps available
13 Megapixel BSI CMOS image sensor
A4 size embedded LED backlight
A3 size shooting area
31x optical, 8X digital
496x Total Zoom.
SDHC Card Slot

Visualiser DC 6D-S-2 Specifications

LENS 22X zoom lens ( 4-88 mm/F4.0-4.5)
WORKING SURFACE A3 Size
ZOOM 31X Optical Zoom; 8X digital zoom
FRAME RATE Upto 60 frame per second
FOCUS Auto/Manual
UPPER LED Illumination System (3 stage brightness control)
BACKLIGHT LED backlight (239*324 mm)
IMAGE SENSOR 1/3.2" CMOS Sensor
STILL IMAGE RESOLUTION 13MP / 5MP / 2MP / 0.8MP)
HDMI OUTPUT Resolution ( 720p / 1080i / 4k )
VGA OUTPUT Resolution ( XGA/WXGA/720p/UXGA 1600 x 1200 )
WHITE BALANCE Auto/Manual
BRIGHTNESS ±7 Compensation
IMAGE CONTROL Freeze / Highlight / Mask / Flip / PIP / Slideshow
IMAGE EFFECT Text / Graphics / B & W / Negative / Sketch
REMOTE CONTROL Yes(IR Remote Control)
MECHANICAL ARM Yes
PC CAMERA Yes
RGB OUTPUT Yes(15-pin D-sub x1)
RGB INPUT Yes(15-pin D-sub x1)
HDMI OUTPUT Yes(19-pin HDMI 1.3 x1)
HDMI INPUT Yes(19-pin HDMI 1.3 x1)
COMPOSITE OUTPUT Yes(RCA Jack x1)
AUDIO INPUT Yes(o3.5 Audio Jack x 1)
USB Yes(USB2.0, Type B x1)
DC 5V INPUT Yes(Power Jack x1)
SDHC CARD SLOT Yes(support up to 16GB SDHC cards)
POWER SOURCE Yes(Power Jack x1)
POWER CONSUMPTION Max. 5W
PACKAGE CONTENT AC/DC adapter x1, 15-pin D-sub cable x1(VGA cable), USB cable x1, HDMI cable x1, AV cable x1, Battery x2, Remote control x1, Microscope adapter x1, Anti-glare sheet x1, Quick guide x1, CDx1
